PSS
Puresci
| Quantity: | |
|---|---|

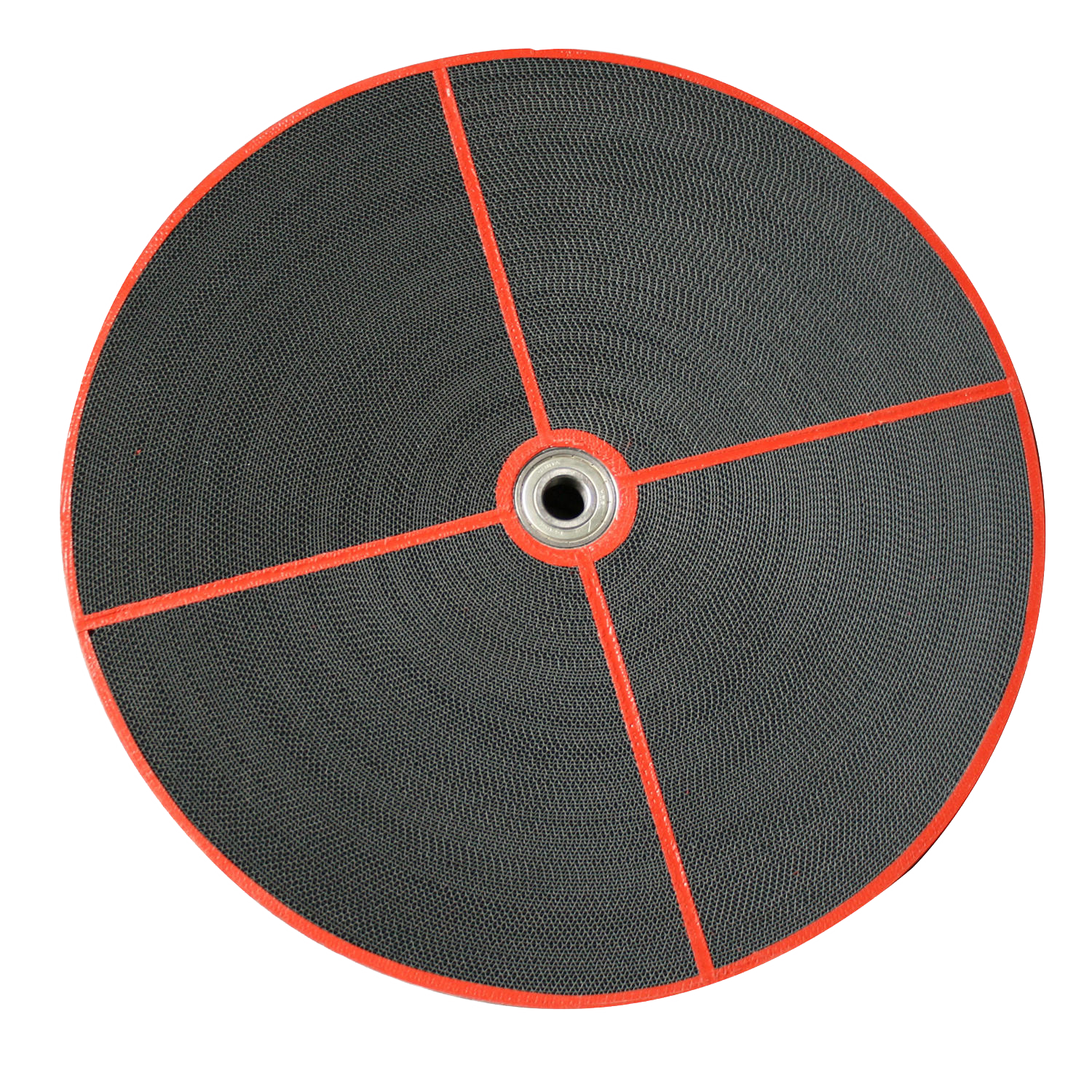

| PSS Regular Desiccant Rotor PSS rotor is used for normal humidity and low dew point operation in high regeneration temperature, and suitable for most dehumidification applications. It has cost-effective, good dehumidification performance in wide range of applications. |
| Model： | PSS |
| Size: | 550×200mm |
| Color: | Black/Grey |
| Material: | Silica Gel |
| General Partition: | 1：3 |
| Service Life: | 10-12 years |
| Accessories: | Motor/Cassette/Fan |
| Unique Moisture Adsorption: | Relative humidity:10% ~ 40% |
| Warranty: | 1 year |
| Application: | Dehumidifier |
----- Product Features -----
1. Unique Moisture Adsorption
Relative humidity 10% ~ 40%, Dew point -50℃ ~ -75℃
2. Advanced Manufacturing Techniques
Axis Perpendicularity error precision ±0.1mm（Below 1500mm）, ±0.2~0.3mm（1500~3000mm）,
Improve tightness, reduce friction, reduce the probability of rotor cracking.
3. Professional Surface Treatment
Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.
4. High Surface Strength
500N/㎝²{50kgf/㎝²}
5. Water Washable
Silica gel does not dissolve in water and any solvent. Non-toxic and tasteless. Therefore, rinse and maintain with water and organic solvent.
6. Variety Construction
It is recommended that using the split type for diameter ≥ 2200mm, due to transportation problems. It's easy way to assemble upper and lower parts on site.If the space is narrow, the rotor can be shaped into fans to assemble.
7. Long Life Service
We made the life test and calculated use life according to Arrhenius theoretical formula. As the combination of lots of repeated experiments and accurate theoretical calculation, service life can be as long as 10 ~ 12 years.
----- Packaging and Delivery -----
Shipping via containers by Sea or Air, or via UPS/ DHL/ FEDEX
Tracking will be sent to you via email after samples or goods are shipped out.
----- Application Areas -----
Plastic Industry
| Food Industry
| ||
Pharmaceutical Industry
| Military Industry
| Shipbuilding Industry
| |
