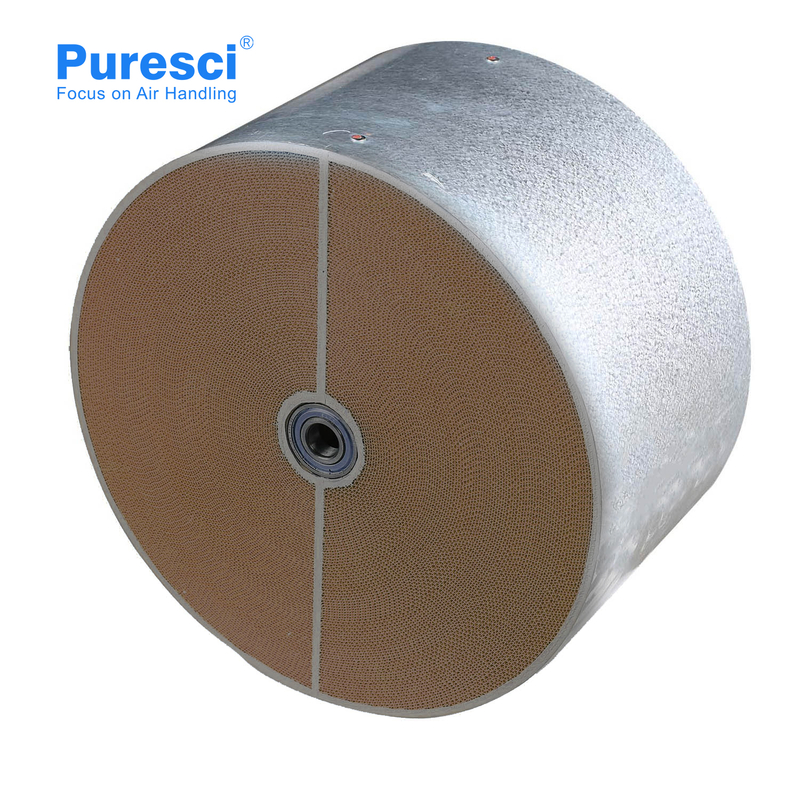

Industrial dehumidification system Low Dew Point Desiccant Rotor with Frame
-
PSC
-
Puresci
| Quantity: | |
|---|---|
Puresci focuses on air treatment ,continuously researches and develops new materials and develops new desiccant rotor, and has taken a leading position in the field of dehumidification.Puresci medium regeneration temperature desiccant rotors have been applied to the production of lithium batteries and have achieved significant results. This dehumidification system reduces the regeneration temperature from the traditional 120-140°C(or even higher) to 80-90°C.
Energy saving , Medium regeneration temperature , low dew point double-rotors system
Product Details
Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 100mm and 150mm.
Material :
The PSC adopts special inorganic sillicate material , and the hydrophilic group adopts special treatment . it is specially designed for low dew point air intake conditions . the soild dehumidification material strenghens the capture function of lower polar water molecules in dry air . the capillary effect is improved ,and the desorption of water does not require too high energy consumption (70-90°C is enough).
0
energy saving 40%-60%
Change of heating method
| Heating | 124KW | 124KW | 124KW | 124KW | 124KW |
| Heating method | Electric heating | 0.3Mpa steam heating | Hot water boiler | Heat pump hot water station | Compressor direct expansion system |
| Dosage | 124 kWh/h | 0.19t/h | 13m³/h | 48kwh/h | 47kwh/h |
| unit price | 0.8RMB/kwh | 280RMB/t | 3RMB/m³ | 0.8yuan | 0.8yuan 37yuan/h |
| Total price | 99RMB/h | 53RMB/h | 39RMB/h | 38yuan/h | generate 77kw of cooling capacity while consuming electricity |
The original high-grade energy soures such as electric heating and steam heating are transformed into low-grade heat sources such as hot water boilers (no pressure,no security certification required), condensation heat,and heat transfer oil furnaces.
Shipping
Via containers by Sea or Air, Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.
Puresci desiccant rotor are widely used in different industries:
Puresci desiccant rotor are widely used in different industries:Pharmaceutical manufacturing;
Food producing,processing and storing;
Lithium battery and electronic producing;
Ship manufacturing and bridge corrosion resistant;
Plastic and chemical products producing;
Storage and maintenance for military;
Puresci focuses on air treatment ,continuously researches and develops new materials and develops new desiccant rotor, and has taken a leading position in the field of dehumidification.Puresci medium regeneration temperature desiccant rotors have been applied to the production of lithium batteries and have achieved significant results. This dehumidification system reduces the regeneration temperature from the traditional 120-140°C(or even higher) to 80-90°C.
Energy saving , Medium regeneration temperature , low dew point double-rotors system
Product Details
Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 100mm and 150mm.
Material :
The PSC adopts special inorganic sillicate material , and the hydrophilic group adopts special treatment . it is specially designed for low dew point air intake conditions . the soild dehumidification material strenghens the capture function of lower polar water molecules in dry air . the capillary effect is improved ,and the desorption of water does not require too high energy consumption (70-90°C is enough).
0 energy saving 40%-60%
Change of heating method
| Heating | 124KW | 124KW | 124KW | 124KW | 124KW |
| Heating method | Electric heating | 0.3Mpa steam heating | Hot water boiler | Heat pump hot water station | Compressor direct expansion system |
| Dosage | 124 kWh/h | 0.19t/h | 13m³/h | 48kwh/h | 47kwh/h |
| unit price | 0.8RMB/kwh | 280RMB/t | 3RMB/m³ | 0.8yuan | 0.8yuan 37yuan/h |
| Total price | 99RMB/h | 53RMB/h | 39RMB/h | 38yuan/h | generate 77kw of cooling capacity while consuming electricity |
The original high-grade energy soures such as electric heating and steam heating are transformed into low-grade heat sources such as hot water boilers (no pressure,no security certification required), condensation heat,and heat transfer oil furnaces.
Shipping
Via containers by Sea or Air, Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.
Puresci desiccant rotor are widely used in different industries:
Pharmaceutical manufacturing;
Food producing,processing and storing;
Lithium battery and electronic producing;
Ship manufacturing and bridge corrosion resistant;
Plastic and chemical products producing;
Storage and maintenance for military;
