Views: 0 Author: Site Editor Publish Time: 2021-09-22 Origin: Site
At present, the rotary dehumidifiers on the market can be divided into general type, cooling type, temperature regulating type and multifunctional type according to their functions. The multifunctional dehumidifier is a rotary dehumidifier that integrates three functions of heating and dehumidification, cooling and dehumidification, and temperature adjustment and dehumidification. This multifunctional dehumidification equipment can not only regulate indoor temperature and control indoor humidity, but also realize the fresh air function of air purification and filtration. The dehumidification wheel of the internal device is almost noiseless under the condition of slow working. In terms of energy saving, compared with traditional mechanical compression refrigeration devices, energy consumption can be saved by more than 30%.

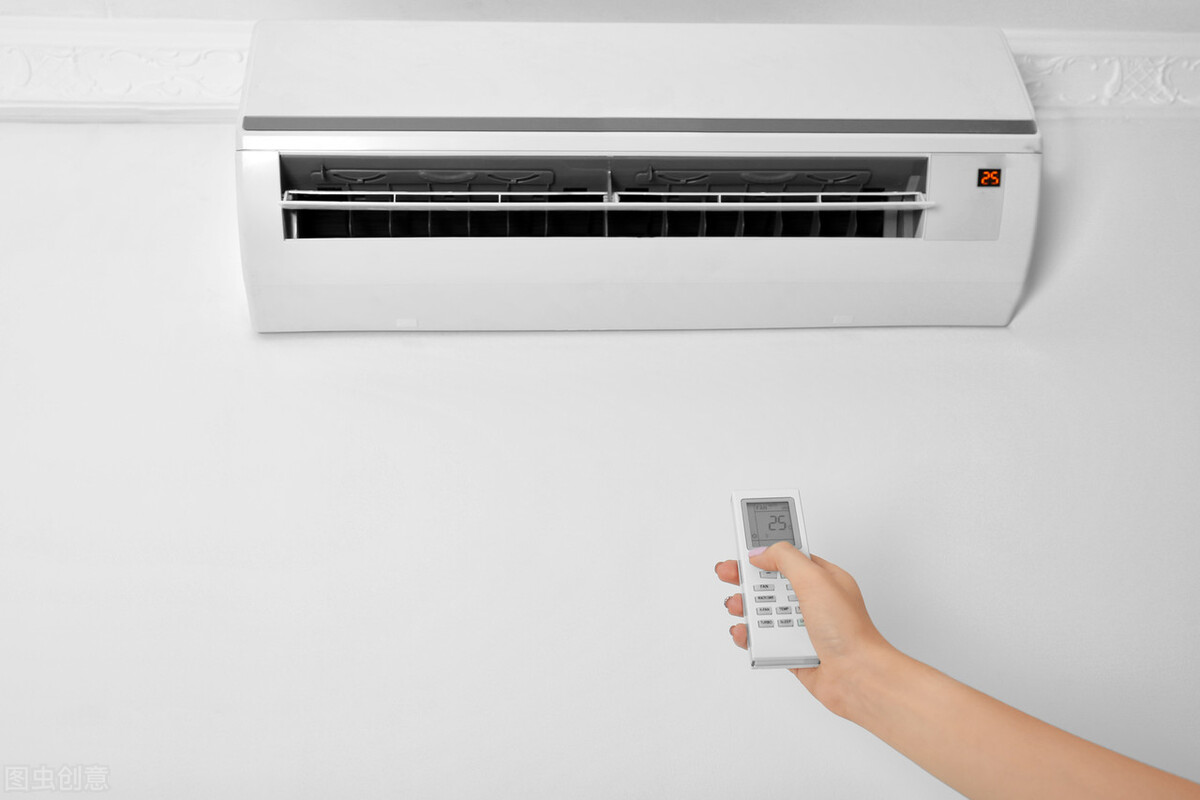

1.Traditional air conditioner :
In fact, traditional household air conditioners generally use mechanical compression refrigeration devices. The compressor will make the refrigerant flow continuously like blood in the air conditioner like a heart of Pentium, so as to adjust the room temperature.
However, we often feel that we have been using air conditioning for a long time, and our body feels uncomfortable, and some even suffer from air conditioning disease. The root cause of our discomfort is poor air circulation in a closed air-conditioned room, and the compressor refrigeration device cannot control the indoor humidity, which makes us unable to maintain a suitable humidity environment.
With the advancement of science and technology, rotary dehumidifiers are gradually replacing traditional mechanical compression refrigeration devices.
2. Rotary dehumidifier
So what is a rotary dehumidifier? Rotary dehumidifier is actually a typical representative of temperature control and dehumidification in the field of air conditioning. The core component of the rotating wheel dehumidifier is a dehumidifying wheel with a honeycomb-like structure. The drive motor rotates the dehumidification wheel 8 to 18 times per hour, repeating continuously to provide dry air.
The rotor is divided into an adsorption zone and a regeneration zone. After the moisture in the air is removed in the adsorption zone, the blower sends the dried air into the room. The rotor that has absorbed the moisture moves to the regeneration zone. At this time, the regeneration air (warm wind) sent in from the opposite direction will drive off the moisture and make the rotor continue to work.

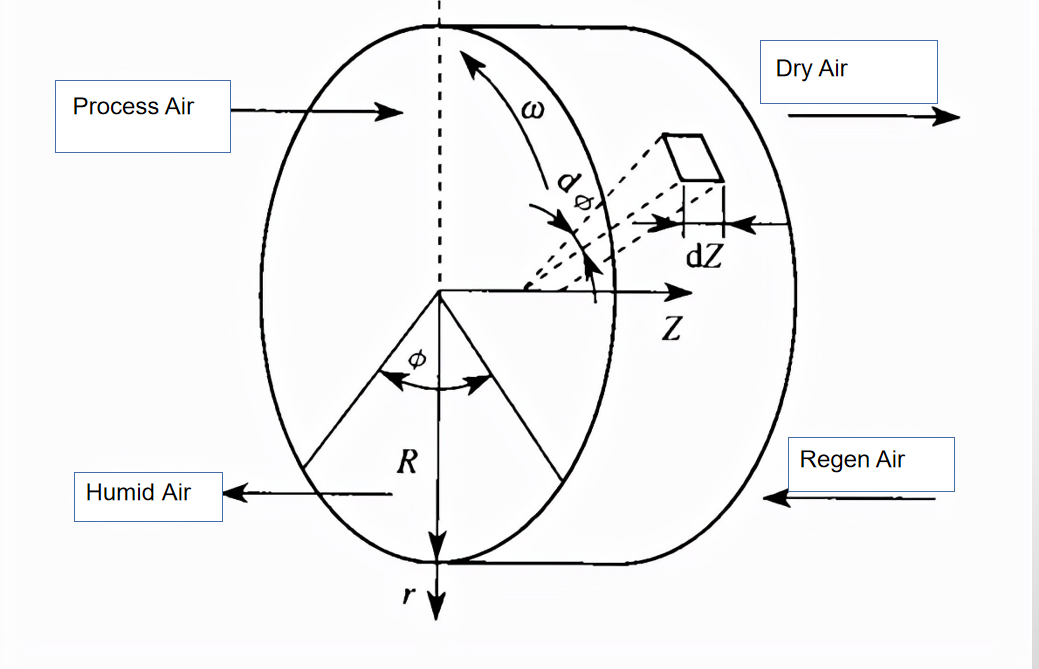

working principle picture
The dehumidification rotor is made of aluminum inorganic fiber substrate with a temperature resistance of 300℃ or more. The adsorbent of the dehumidification rotor is a porous solid, and its adsorbing group is the hydroxyl group on the silanol group (adsorbent material) center).
Therefore, in an air-conditioned environment equipped with a dehumidification wheel, we can feel comfortable and breathe fresh air from time to time. Are you looking forward to it?
