Puresci high quality desiccant rotor 850*200mm for dehumidifiers manufacturer

Share to:

Puresci high quality desiccant rotor 850*200mm for dehumidifiers manufacturer

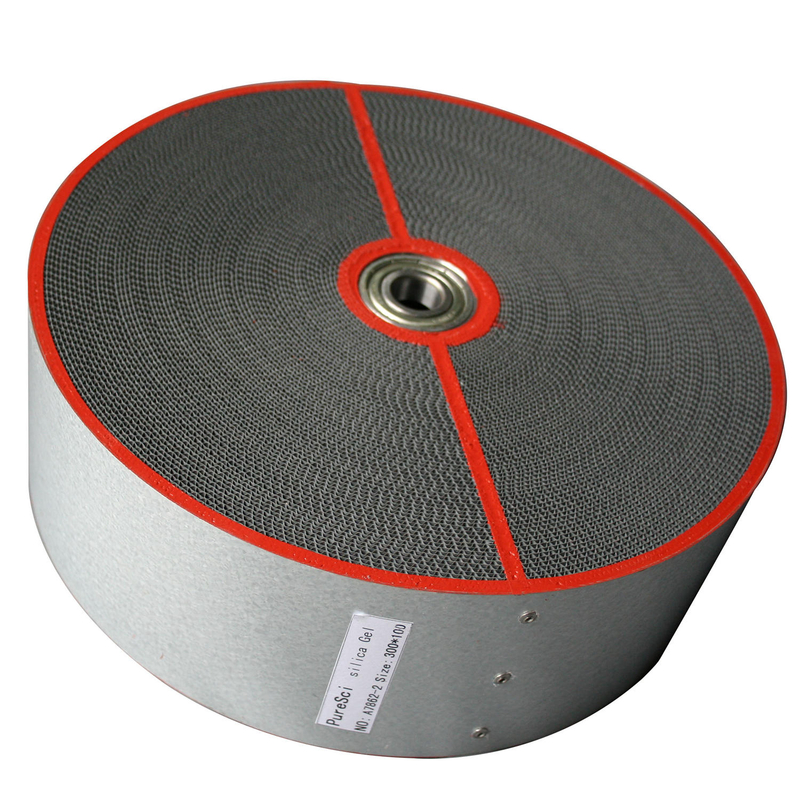

Regular Desiccant Rotor : PSS
PSS rotor is used for normal humidity and low dew point operation in high regeneration temperature, and suitable for most dehumidification applications.
It has cost-effective, good dehumidification performance in wide range of applications.
General Partition 1 : 3

Model:
PSS
Brand:
Puresci

Availability:

Quantity:



Inquire Add to Basket

Regular Desiccant Rotor : PSS

PSS rotor is used for normal humidity and low dew point operation in high regeneration temperature, and suitable for most dehumidification applications.      It has cost-effective, good dehumidification performance in wide range of applications.
     General Partition 1 : 3

Features

1. Unique Moisture Adsorption

 Relative humidity 10% ~ 40%,  Dew point  -50℃ ~ -75℃

2. Advanced Manufacturing Techniques

Axis Perpendicularity error precision ±0.1mm（Below 1500mm）, ±0.2~0.3mm（1500~3000mm）,  Improve tightness, reduce friction, reduce the probability of rotor cracking.

3. Professional Surface Treatment

 Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.

4. High Surface Strength

 500N/㎝²{50kgf/㎝²}

5. Water Washable

 Silica gel does not dissolve in water and any solvent. Non-toxic and tasteless. Therefore, rinse and maintain with water and organic solvent.

6. Variety Construction

It is recommended that using the split type for diameter ≥ 2200mm, due to transporation problems. It's easy way to assemble upper and lower parts on site. If the space is narrow, the rotor can be shaped into fans to assemble.


7. Long Life Service

 We made the life test and calculated use life according to Arrhenius theoretical formula. As the combination of losts of repeated experiments and accurate theoretical calculation, serivice life can be as long as 10 ~ 12 years.

Products Structure and Dimensions

 Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 65mm, 100mm and 150mm.

ROTOR SIZE
Diameter(mm)	Thickness(mm)	Bearing/ Inner hole	Shaft Diameter(mm)	Delivered knock-down
180-550	50, 100, 150, 200, 300, 400	6204/20	50	NO
600-850	200, 300, 400	6204/20	70	NO
965-1070	200, 300, 400	6204/20	100	NO
1200-1650	200, 300, 400	6206/30	150	CAN
1730-4250	200, 300, 400	6206/30	240	YES

 Accessories - Cassette, Flange, etc

Cassette's material (1) Cold drawn square tube, high temperature paint
 (2) Stainless steel square tube
 Gear motor
 Applicable environment is  -10℃ ~ 40℃),  Motor can be customized.


If the rotor is equipped with flange, flange is: (1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
 (2) Stainless steel angle steel flange:  30*30mm or 40*40mm

Product Packing and Shipping

Shipping:

Via containers by Sea or Air,  Or via UPS/ DHL/ FEDEX,  Tracking will sent to you via email after samples or goods are shipped out.

Application

Puresci desiccant rotor are widely used in different industries:

Pharmaceutical manufacturing;  Food producing,processing and storing;
  Lithium battery and electronic producing;
  Ship manufacturing and bridge corrosion resistant;
  Plastic and chemical products producing;
  Storage and maintenance for military;

Our Service

1. Pre-sale Service

(1) Technical service consultation. (2) PC and mobile phone selection software.
 (3) Support service - product test, system design, R&D technical support.

2. Medium-sales Service

 Precision production facilities and consummate production technology is a guarantee of high quality.

3. After-sales Service

 Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.
