industry control humidity desiccant rotor for most dehumidification applications

PST Regeneration Energy-saving Desiccant Rotor
After years of R&D of dehumidification materials, Puresci has acquired a new generation product - PST desiccant rotor, Which is the TOP products, focus on saving regeneration energy for users.
Patented product, Saving 25% regeneration energy.

For 1:4 partition, dehumidification performance is similar to that of regular PSS 1:3.

Model:
PST
Brand:
Puresci

Availability:

Quantity:



Inquire Add to Basket

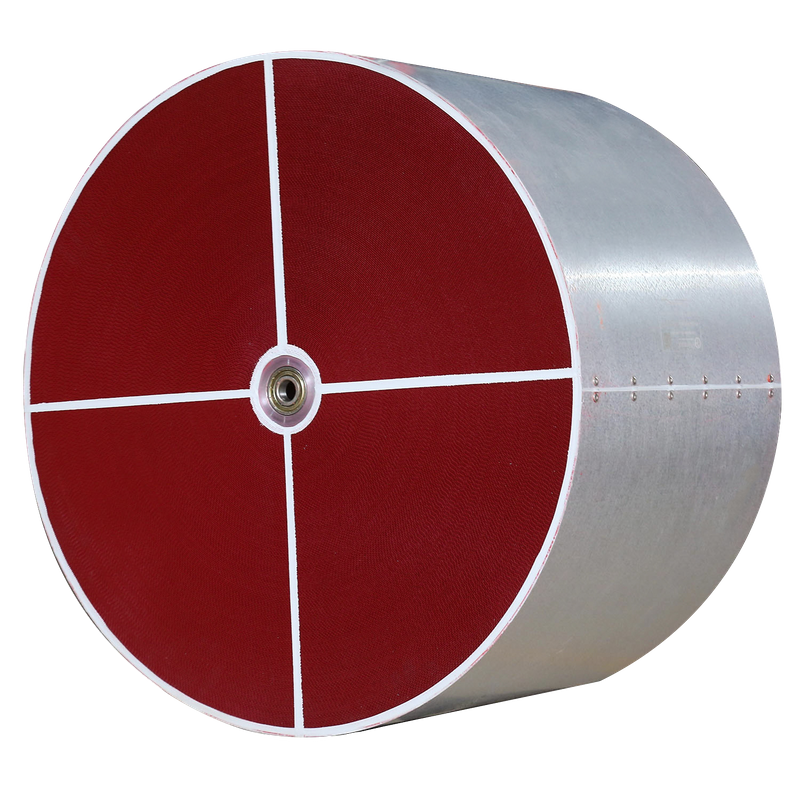

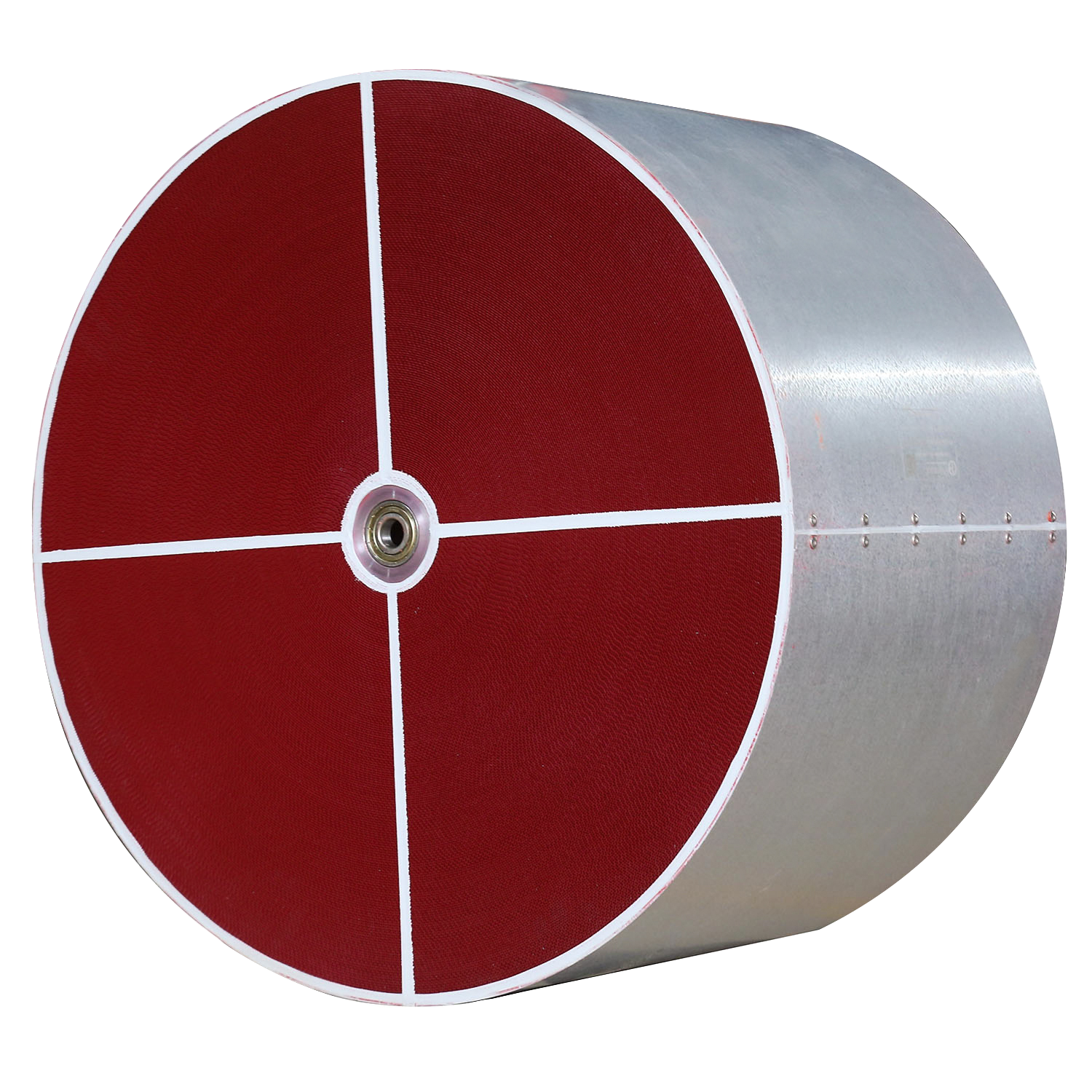

PST Regeneration Energy-saving Desiccant Rotor

After years of R&D of dehumidification materials, Puresci has acquired a new generation product - PST desiccant rotor, Which is the TOP products, focus on saving regeneration energy for users. Patented product, Saving 25% regeneration energy.

 For 1:4 partition, dehumidification performance is similar to that of regular PSS 1:3.

Features

1. Powerful Regeneration Energy-saving

For the traditional desiccant rotor dehumidifier with airflow 30000CMH, the regeneration energy consumption (Summer) is 250KW, which is the input of a small transformer, therefore, desiccant rotor dehumidifier is nicknamed as "Electric tiger". For example:
 Summer dry bulb temperature 35℃，Regeneration temperature 120℃，dehumidifier runs 24 hours/day，the average electricity fee is USD0.073，process airflow temperature 22℃，process airflow 15000CMH,


	Electricity Fee	Calculation Formula	Post Rotor Cooling Capacity
Regular Desiccant Rotor	293.46	(120-35)1.00550001.2/3600/0.8524*0.073=293.46	70KW
PST Desiccant Rotor	220.095	(120-35)1.00537501.2/3600/0.8524*0.073=220.095	50KW

 CONCLUSION:  With its excellent performance, PST can save regeneration cost 73.365 USD/day and cooling capacity 20KW.

2. Excellent Dehumidification Performance at Low Temperature

With its strong dehumidification capacity, not only satisfy with customers demanding requirements, but also saving  25% regeneration energy consumption, create value for customers. Because there are a variety of molecular sieves mixed in it, in the low dew point can not only be similar to the regular molecular sieve desiccant rotor (high temperature regeneration) to reach the low dew point state, but also regeneration temperature is 20℃ ~ 40℃ lower than the regular molecular sieve desiccant rotor, the energy saving effect is more significant.


3. Patented Product, 1:4 Partition

 For 1:4 partition, dehumidification performance is similar to that of PSS 1:3

4. Unique Composite Materials

 PST desiccant rotor that Puresci subvert the traditional silica gel desiccant rotor method, adopting a variety of dehumidification materials to combine with inorganic fiber by grafting. A variety of silica gel and molecular sieve materials take into account the characteristics of water absorption and adsorption depth, including 59.4% special silica gel and 30.6% various molecular sieve.

Products Structure and Dimensions

 Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requirements, such as 50mm, 65mm, 100mm and 150mm.

ROTOR SIZE
Diameter(mm)	Thickness(mm)	Bearing/ Inner hole	Shaft Diameter(mm)	Delivered Knock-down
180-550	50,100,150,200,300,400	6204/20	50	NO
600-850	200, 300, 400	6204/20	70	NO
965-1070	200, 300, 400	6204/20	100	NO
1200-1650	200, 300, 400	6206/30	150	CAN
1730-4250	200, 300, 400	6206/30	240	YES

 Accessories - Cassette, Flange, etc

Cassette's material

 (1) Cold drawn square tube, high temperature paint
(2) Stainless steel square tube
Gear motor
Applicable environment is -10℃ ~ 40℃, Motor can be customized.

If the rotor is equipped with flange, It's available for: (1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
(2) Stainless steel angle steel flange: 30*30mm or 40*40mm

Product Packing and Shipping

Shipping:

Via containers by Sea or Air,  Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.

Application

Puresci desiccant rotor are widely used in different industries:

Pharmaceutical manufacturing;  Food producing, processing and storing;
 Lithium battery and electronic producing;
 Ship manufacturing;
and bridge corrosion resistant;
 Plastic and chemical products producing;
 Storage and maintenance for military;
