high adsorption capacityindustrial dehumidification desiccant rotor 1370*300mm

Share to:

high adsorption capacityindustrial dehumidification desiccant rotor 1370*300mm

Low Regeneration Temperature Desiccant Rotor : PSL-B
PSL-B desiccant rotor regeneration temperature 40 ℃ ~ 60℃， is suitable for low temperature regeneration of ordinary humidity operation (Humidity 20% ~ 40%)

Desiccant rotor partition 1 : 1.

Model:
PSL-B
Brand:
Puresci

Availability:

Quantity:



Inquire Add to Basket

Low Regeneration Temperature Desiccant Rotor : PSL-B

 PSL-B desiccant rotor regeneration temperature 40 ℃  ~ 60℃， is suitable for low temperature regeneration of ordinary humidity operation (Humidity 20% ~ 40%)

  Desiccant rotor partition 1 : 1.

Features

1. Low Regeneration Temperature

 Regeneration temperature 40℃ ~ 60℃

2. Waste Heating Source Recircle, 100% Regeneration Energy Saving

 Take full advantage of low-grade energy sources such as condensation waste heat, solar energy and industrial waste heat as desorption.

3. Unique Composite Materials

 All materials are developed independently by Puresci Material R&D Lab for several years.

4. Water Washable

 The desiccant rotor can be washed in the water.

5. High Praise

Products Structure and Dimensions

 Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requiremens, such as 50mm, 65mm, 100mm and 150mm.

ROTOR SIZE
Diameter(mm)	Thickness(mm)	Bearing/ Inner Hole	Shaft Diameter(mm)	Delivered knock-down
180-550	50, 100, 150, 200, 300, 400	6204/20	50	NO
600-850	200, 300, 400	6204/20	70	NO
965-1070	200, 300, 400	6204/20	100	NO
1200-1650	200, 300, 400	6206/30	150	CAN
1730-4250	200, 300, 400	6206/30	240	YES

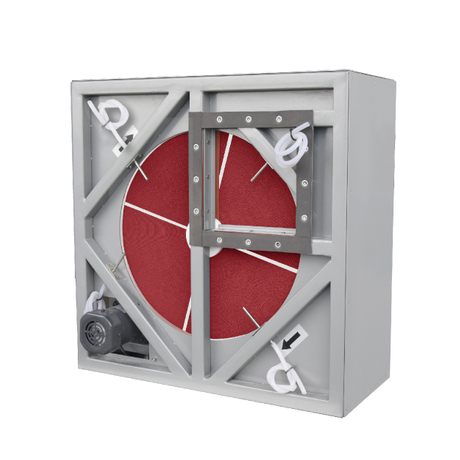

 Accessories - Cassette, Flange, etc

Cassette's material (1) Cold drawn square tube, high temperature paint
(2) Stainless steel square tube
Gear motor
Applicable environment is -10℃ ~ 40℃, Motor can be customized.

Flange

If the rotor is equipped with flange, flange is: (1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
(2) Stainless steel angle steel flange: 30*30mm or 40*40mm

Product Packing and Shipping

Shipping:

Via containers by Sea or Air, Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.

Application

Puresci desiccant rotor are widely used in different industries:

 Pharmaceutical manufacturing ; Food producing, processing and storing ; Lithium battery and electronic producing ; Ship manufacturing and bridge corrosion resistant ; Plastic and chemical products producing ; Storage and maintenance for military ;

Our Service

1. Pre-sale Service

 (1) Technical service consultation. (2) PC and mobile phone selection software.(3) Support service - product test, system design, R&D technical support.

2. Medium-sales Service

 Precision production facilities and consummate production technology is a guarantee of high quality.

3. After-sales Service

 Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.
