High Quality Dehumidifier Desiccant Rotor for Lithium Battery Production

Share to:

High Quality Dehumidifier Desiccant Rotor for Lithium Battery Production

PSS-S Refrigeration Energy-saving Desiccant Rotor
PSS-S is a new generation of desiccant rotor with higher performance and cost-effective.
PSS-S dehumidification performance is better than regular PSS under the same condition of airflow, temperature and moisture of process air, regeneration temperature and humidity ratio of regeneration air.

Model:
PSS-S
Brand:
Puresci

Availability:

Quantity:



Inquire Add to Basket

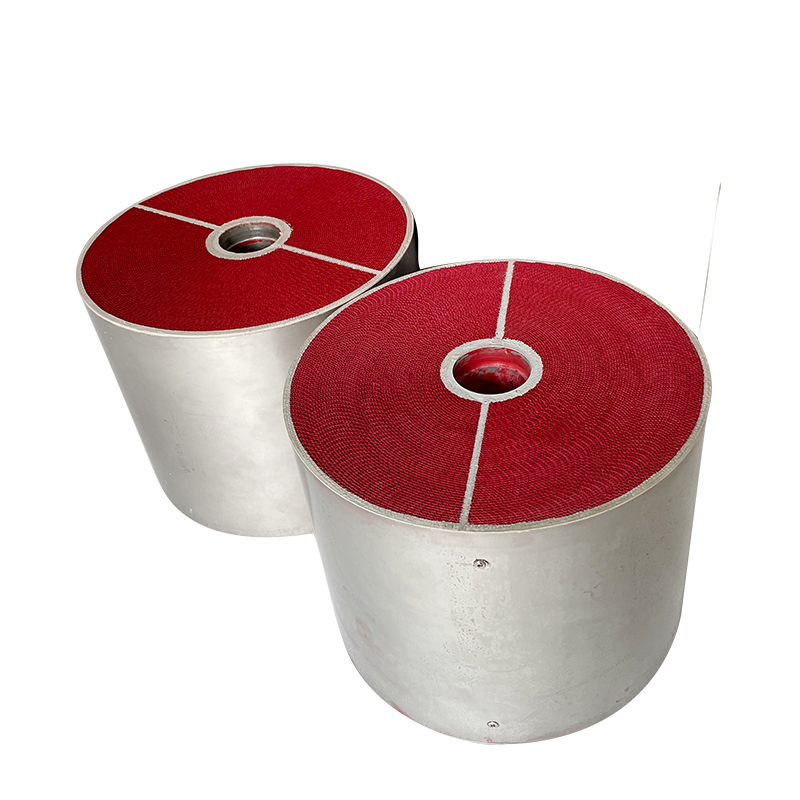

PSS-S Refrigeration Energy-saving Desiccant Rotor

      PSS-S is a new generation of desiccant rotor with higher performance and cost-effective.
      PSS-S dehumidification performance is better than regular PSS under the same condition of airflow, temperature and moisture of process air, regeneration temperature and humidity ratio of regeneration air.

Features

1. Refrigeration Energy-saving

 PSS-S products have excellent performance in ordinary humidity (RH:10% ~ 40%), benifiting to its larger dehumidity performance. Refrigeration system matching with desiccant rotor can be changed and the temperature of chilled water could be increased by 4°C ~ 5°C. (standard 7°C inlet，12°C outlet，11~12°C inlet，16~17°C oulet）

Save 12% ~ 15% of the total operating cost of system.

2. Smaller Size

Keep same performance, PSS-S is a size smaller  than of regular PSS.  Compared with normal silica gel desiccant rotor on the market, Under the same working conditions, because PSS-S has a very high performance dehumidification capacity, it is a smaller size than regular PSS when selecting the desiccant rotor.


3. Enhance Adsorption Performance

PSS-S performance is 10% ~ 15% more efficient than regular PSS. PSS-S regeneration temperature is 20°C ~ 40°C lower than regular PSS in low dew point.


4. Wide Range of Application

(1) Normal humidity 10% ~ 40% application, Regeneration temperature 120℃ ~ 180℃ (2) Low dew point application，can reach to -50℃ ~ -75℃

5. Unique Composite Materials

All materials are developed independently by Puresci Material R&D Lab for several years. PSS-S  material is composed of inorganic fiber, inorganic silicate and high temperature resistant inorganic surface coating.


6. Professional Surface Treatment

 Adopt international standard environmental paint with water-resistant, high temperature resistance, strong weather resistance, anti-corrosion, no odor and high hardness.

Products Structure and Dimensions

 Besides standard dimensions (Diameter and Thickness), non-standard rotors can be customized according to customers' requirements, such as 50mm, 65mm, 100mm and 150mm.

ROTOR SIZE
Diameter(mm)	Thickness(mm)	Bearing/ Inner hole	Shaft Diameter(mm)	Delivered Knock-down
180-550	50, 100, 150, 200, 300, 400	6204/20	50	NO
600-850	200, 300, 400	6204/20	70	NO
965-1070	200, 300, 400	6204/20	100	NO
1200-1650	200, 300, 400	6206/30	150	CAN
1730-4250	200, 300, 400	6206/30	240	YES

 Accessories - Cassette, Flange, etc


Cassette's material (1) Cold drawn square tube, high temperature paint
(2) Stainless steel square tube
Gear motor
Applicable environment is -10℃ ~ 40℃, Motor can be customized.


If the rotor is equipped with flange, It's available for:(1) Hot dip galvanized angle steel flange: 30*30mm or 40*40mm
(2) Stainless steel angle steel flange: 30*30mm or 40*40mm


Product Packing and Shipping

Shipping:

Via containers by Sea or Air, Or via UPS/ DHL/ FEDEX, Tracking will sent to you via email after samples or goods are shipped out.

Application

Puresci desiccant rotor are widely used in different industries:

  Pharmaceutical manufacturing; Food producing,processing and storing; Lithium battery and electronic producing; Ship manufacturing and bridge corrosion resistant; Plastic and chemical products producing; Storage and maintenance for military;

Our Service

1. Pre-sale Service

(1) Technical service consultation. (2) PC and mobile phone selection software.
(3) Support service - product test, system design, R&D technical support.

2. Medium-sales Service

Precision production facilities and consummate production technology is a guarantee of high quality.

3. After-sales Service

Timely delivery, quickly help customers solve technical problem and optimize equipment performance, ensure terminal customers to run dehumidification equipment efficiency.
